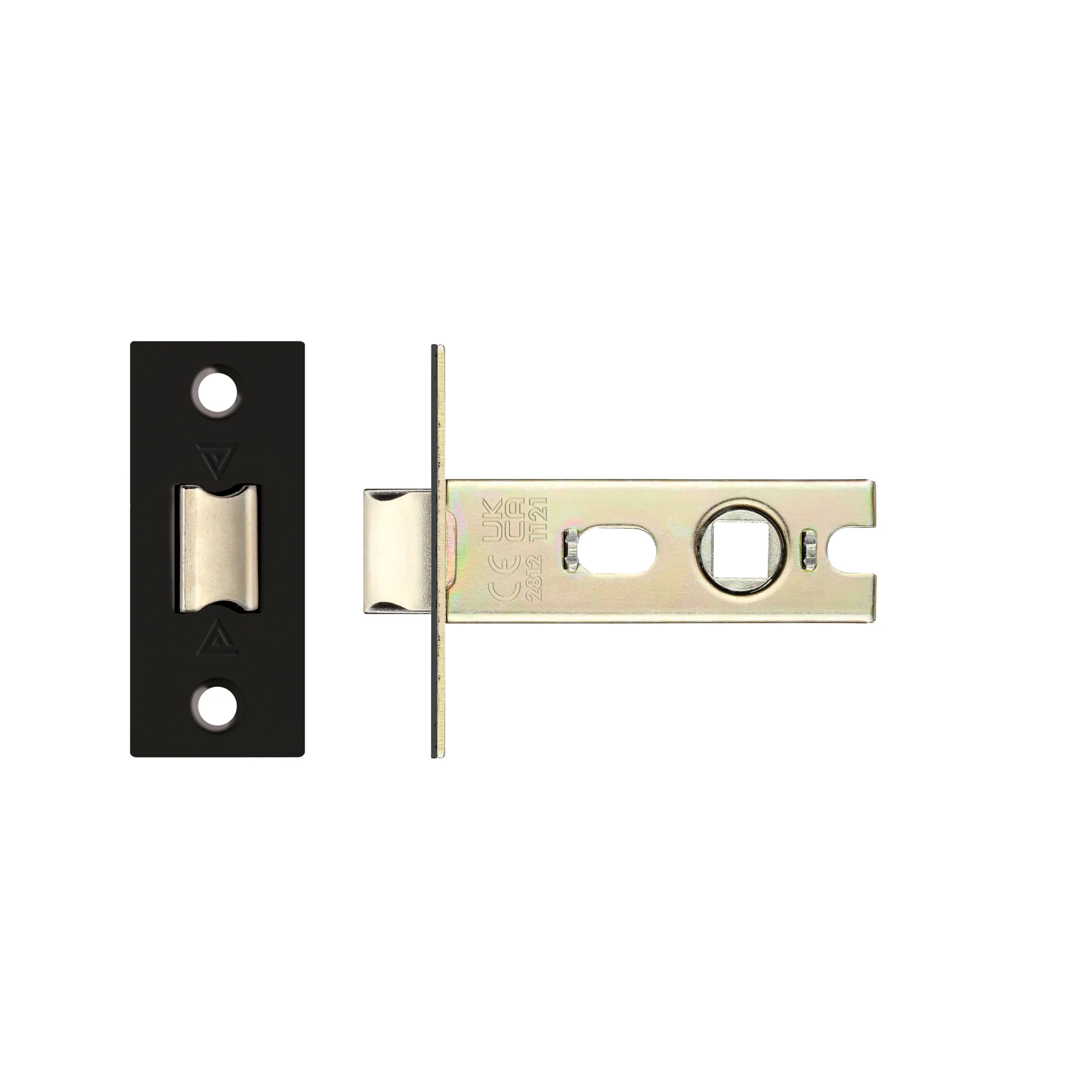

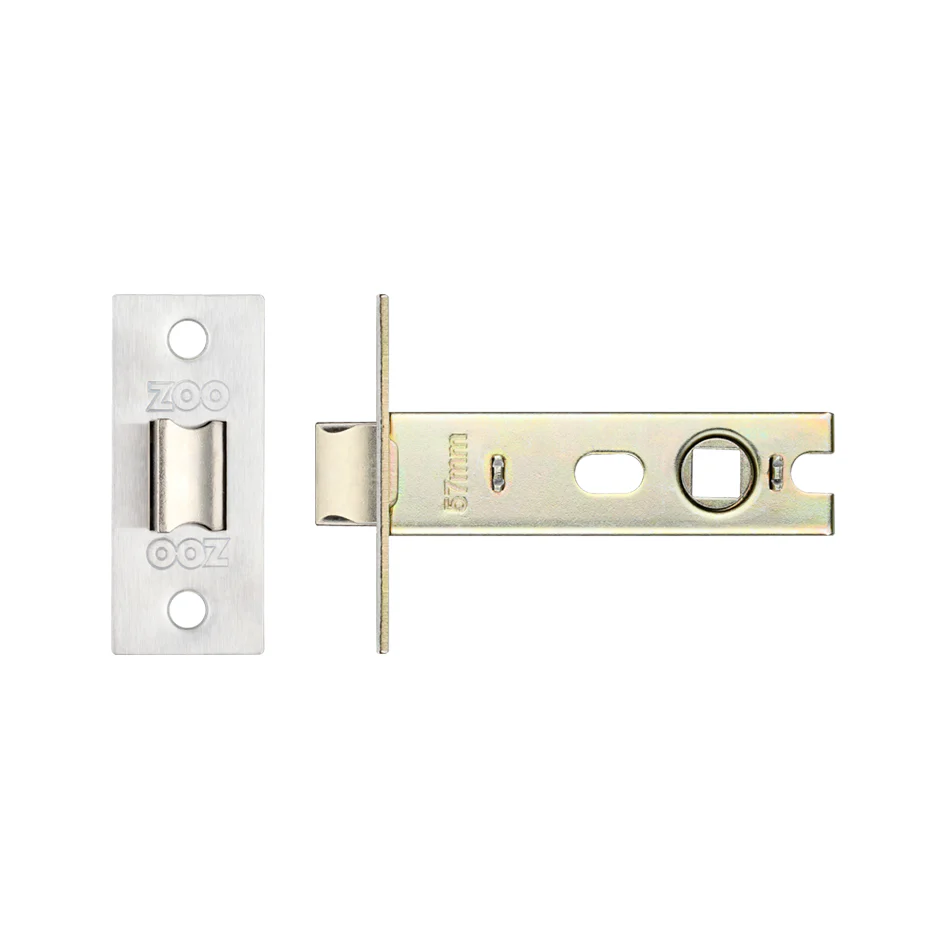

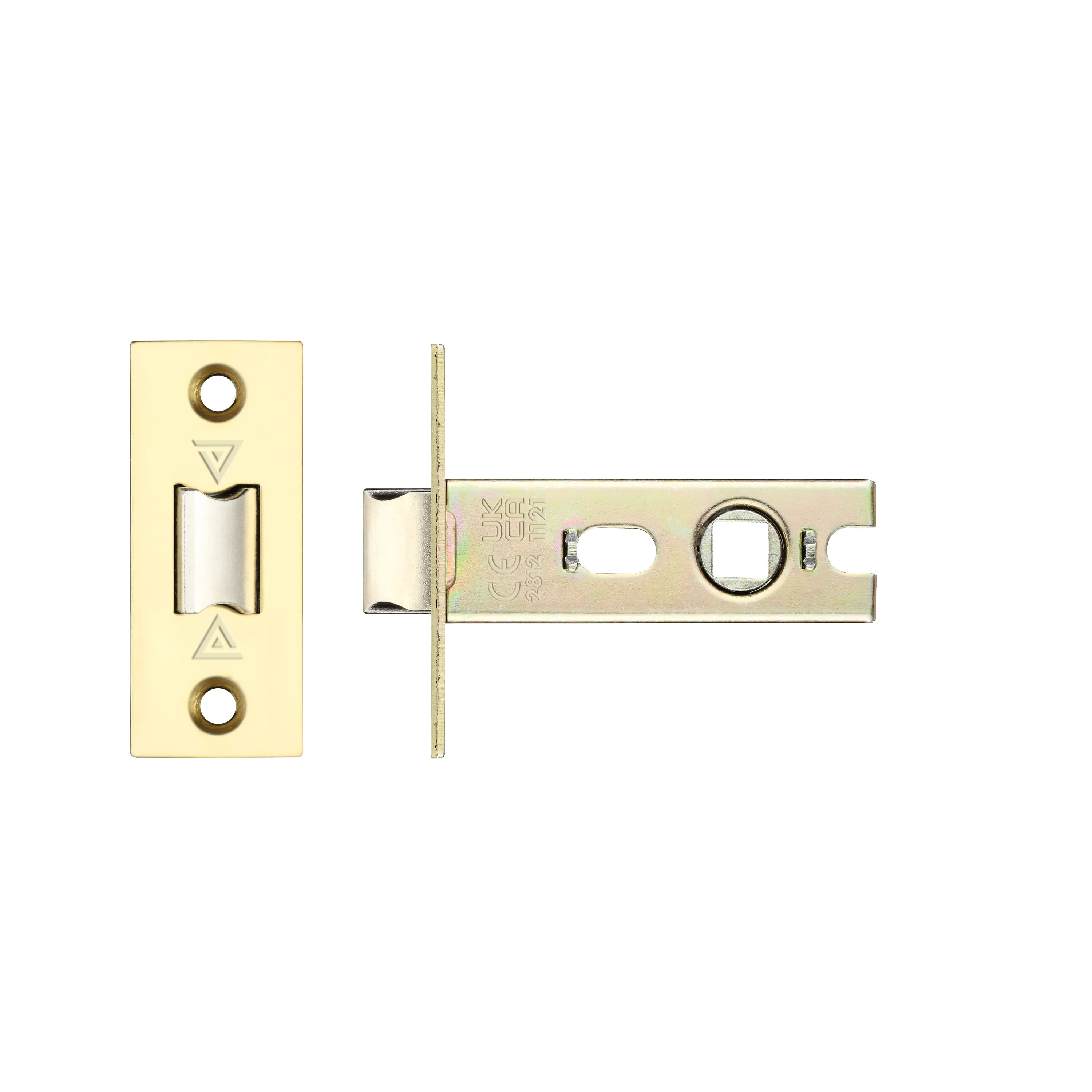

Project Tubular Latch – 76mm

The Project Tubular Latch is a robust, fire-rated latch solution designed for high-use residential and commercial doors. Featuring a guided latch bolt and adjustable strike, the latch delivers smooth, consistent operation and reliable alignment over long-term use.

Successfully tested to BS EN 12209:2003 / AC:2005 and BS EN 1634-1, this latch is suitable for use on FD30 and FD60 timber fire doors. Supplied complete with strike plate and dust box, it is backed by a 10-year mechanical guarantee for added assurance.

Key Features

• Project tubular latch
• 76mm case size
• Guided latch bolt for smooth operation
• Adjustable strike for accurate alignment
• Available with bolt-through fixing
• Supplied with strike plate and dust box
• 10 year mechanical guarantee
• Suitable for residential and commercial doors

Case & Backset

• Case Size: 76mm
• Backset: 56mm (PRTLFD76)
• Case Dimensions: 15mm x 21mm x 64/76mm

Forend Profile

• Square

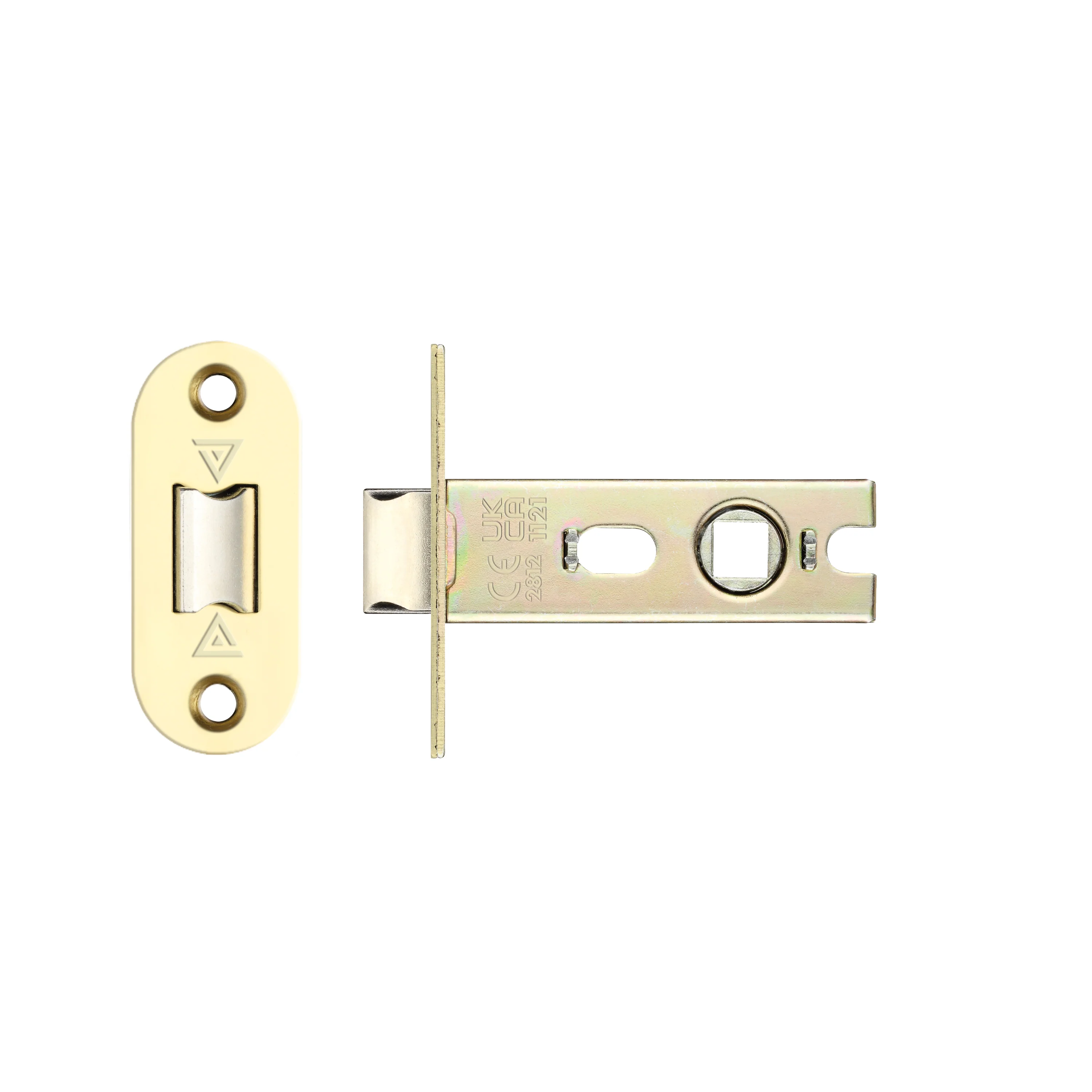

• Radius

Finish

• Satin Stainless Steel

Fire Rating & Compliance

• Successfully tested to BS EN 12209:2003 / AC:2005
• Successfully fire tested to BS EN 1634-1
• Suitable for FD30 & FD60 timber fire doors
• UKCA Marked – Certificate AG7962
• CE Marked – Certificate AG7963

Intumescent Protection

• Intumescent kit sold separately
• Material: 1mm / 2mm FlexiFire Graphite
• ZITL0130G – 30 minute fire doors
• ZITL0160G – 60 minute fire doors

Specifications

• Product Type: Tubular Latch
• Fixing: Bolt-Through / Standard
• Latch Bolt: Guided
• Forend: Satin Stainless Steel
• Application: Fire-rated timber doors

Packaging Information

• Pack Quantity: 1 latch supplied with strike plate and dust box
